The Core

The Core

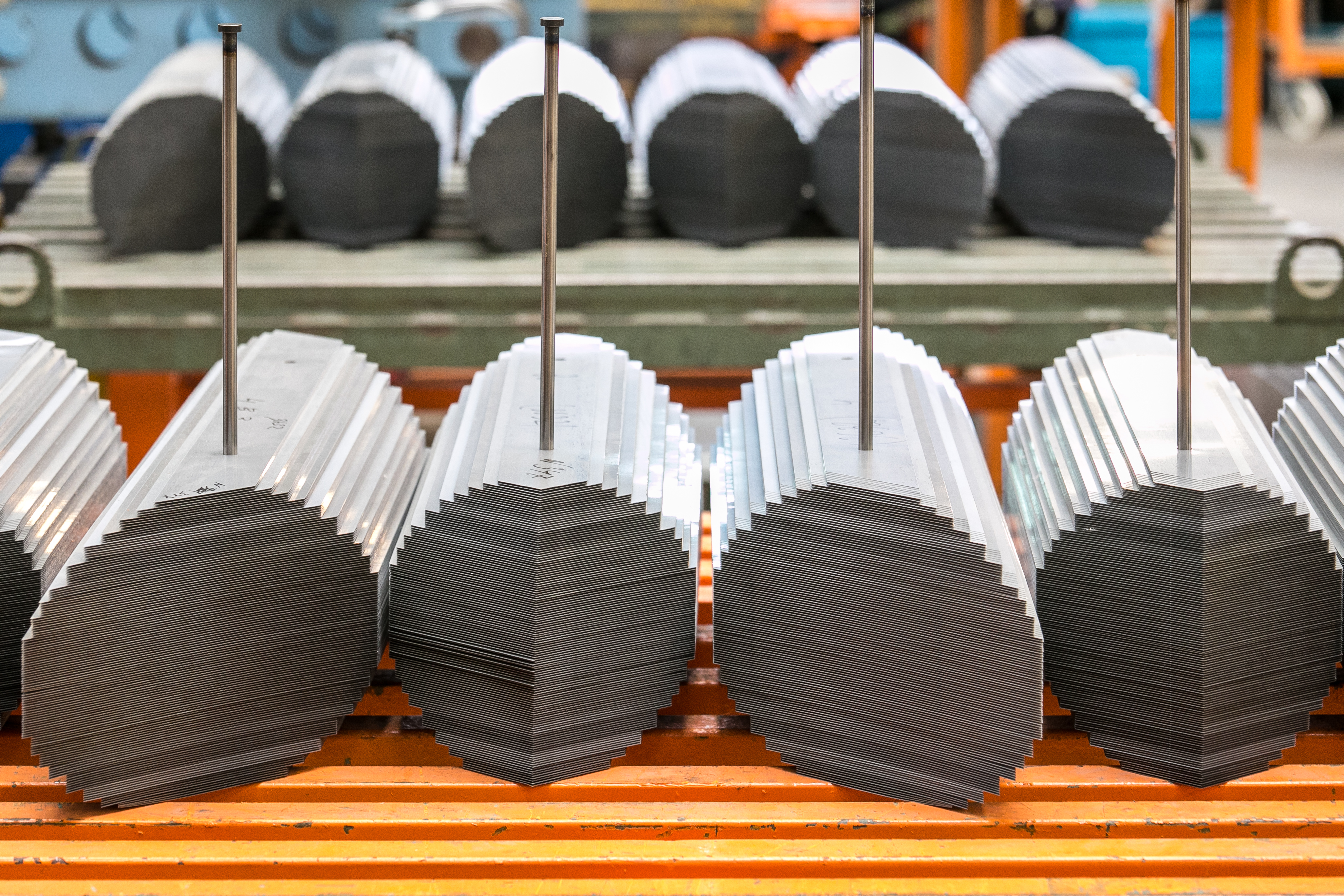

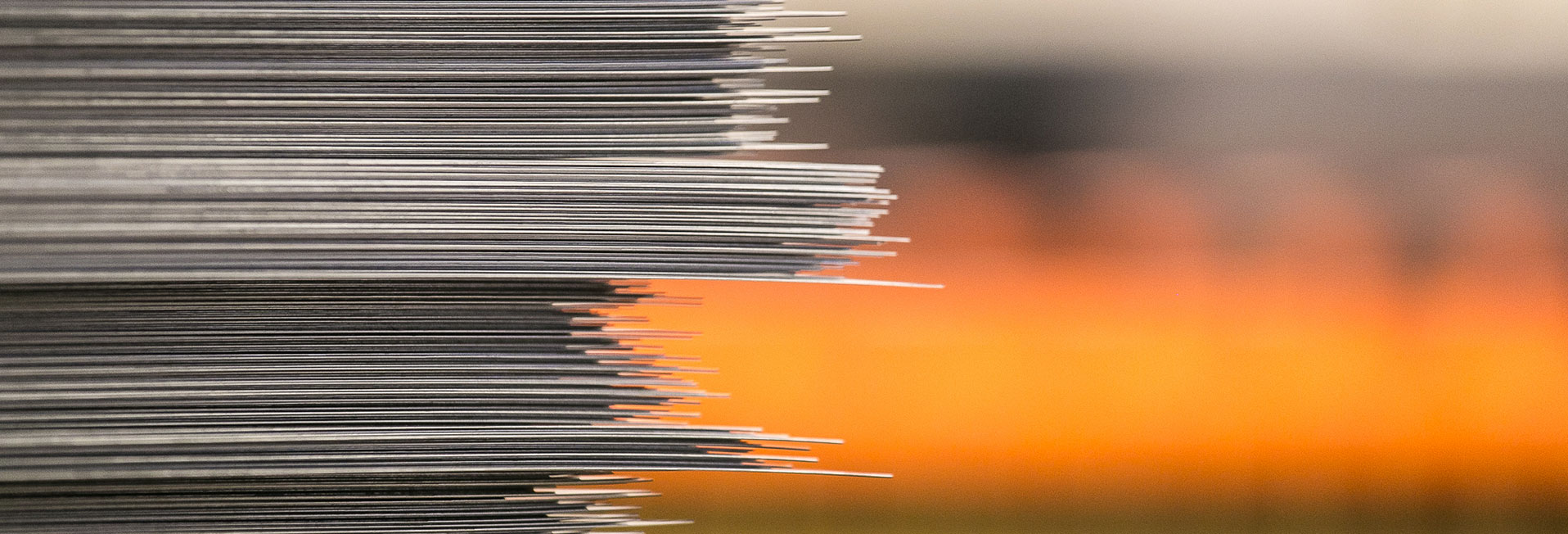

The magnetic core of Ardan transformers is manufactured using magnetic grain oriented silicon steel sheets. This type of steel is highly permeable by the magnetic field and its fluctuations, thus reducing no load losses for the transformers and reduced the noise omitted by the transformer.
The joints between columns and yokes are Step-Lap inserted sheet, so that the magnetic stream flows more easily, no load current and noise are reduced and the core has a good mechanical stiffness. External tie rods connect the upper and lower clamps and creates a rigid support for core, windings and outlets

Price :

Description

The magnetic core of Ardan transformers is manufactured using magnetic grain oriented silicon steel sheets. This type of steel is highly permeable by the magnetic field and its fluctuations, thus reducing no load losses for the transformers and reduced the noise omitted by the transformer.
The joints between columns and yokes are Step-Lap inserted sheet, so that the magnetic stream flows more easily, no load current and noise are reduced and the core has a good mechanical stiffness. External tie rods connect the upper and lower clamps and creates a rigid support for core, windings and outlets.
